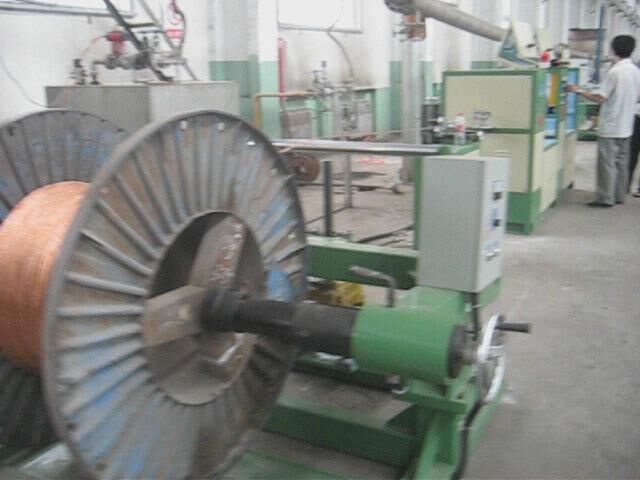

Cable Extruder Single-Reel Boxed Type Pay off machine

1. Application:

For insulation line, with bunched or stranded soft copper wire.

2. Main Technic Specifition:
Bobbin Size (mm) 630~800.
Pay off wire 16~28AWG bunched copper  Ø3.5 solid wire, Ø1.0 ~5.0  insulated core
Power 7.5KW 6P
Bobbin Lifting & Fixing Hydraulic pump lifting, pneumatic cylinder fixing
Brake Pneumatic disc brake
Tension Control by separate dance or accumulator
Max Speed (m/min) 500m/min
