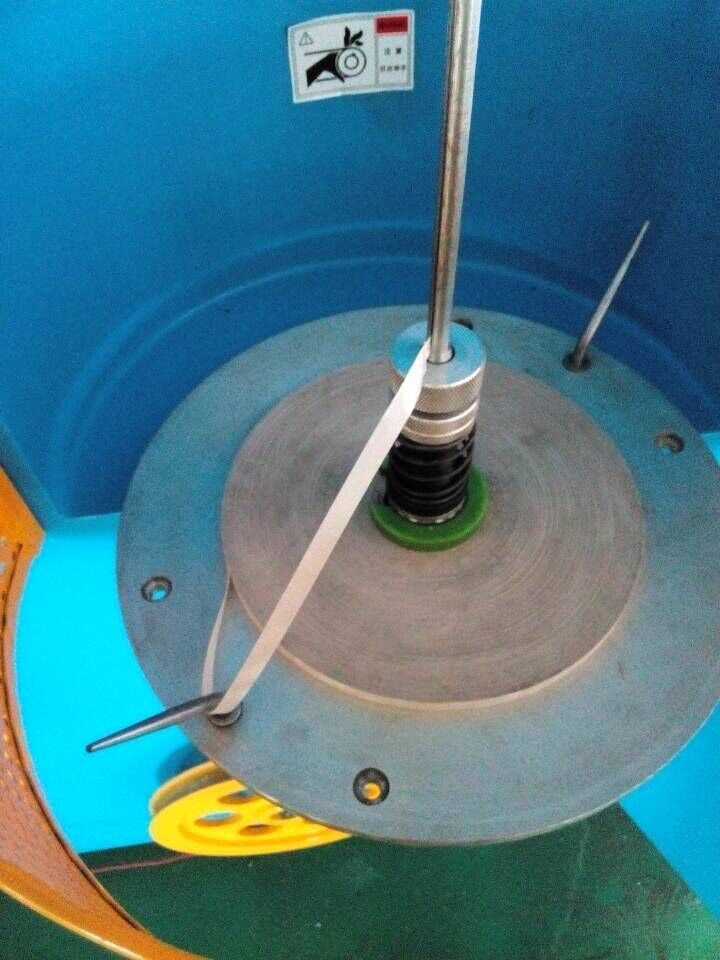

High Speed Cable Tapping Machine is maily used for tapping spially on the cable with cotton paper or aluminum for shielding.

Applied materials: Cotton paper, PE tape, Mylar tape, aluminum tape, mica tape etc.

FEATURES:
 Diameter of tapping cable  Φ1.7~ 12mm
 Tapping pitch  5.7~24 mm
 Pay-off bobbin size  Φ400-500mm
 Tension range for pay-off  250~1000g
 Speed  steepless speed adjust , Max. speed:  150 ~ 2500RPM
  Transverse  Φ20mm bare pole transverse, traverse pitch and distance are adjustable
 Size of take-up bobbin   Φ500-630mm
 Drive  2HP AC motor( bearing made in Japan)+Emerson or Teco 2HP Inverter, steepless speed adjust
 Length counter  5 bits electronic counter, automatically stop when length is reached.
