Product Description

Date Cable Making Equipment

1. APPLICATION:
Cable Making Equipment is high production line, It's used for the copper wire insulation coating, then the wire get cooling through water to finished products. The product can be power cable, automotive wire, communication cable, electronic wire, magnetic wire, LAN cable and so on.

2. SALIENT FEATURES
High linear outputs throughout a broad range of speeds and pressure
Accurate functioning
Robust design with unique safety features for the user
 Heavy duty bearing housing for trouble free working
Ease in operation and maintenance
Compact and robust construction
Low power consumption
Longer durability and serviceability
Efficient performance
Ability to work in any condition

SAFETY

Switch-off at overpressure
Disabling signal at under temperatures
Stop at over temperature
Motor power limit
Emergency stop
Monitoring of tolerances and alarms
Monitoring of sensors

3. MAIN PARTS BRAND
1. Motor: Germany-Siemens
2. Inverter: Germany-Siemens or YASKAWA Japan
3. Electric equipment: Siemens and Omron
4. Bearing: NSK from Japan
5. Belt: Mitsubishi

4, TECHNICAL PARAMETER:
1. Name: Date Cable Making Equipment
2. Power: 380V, 50Hz three phase or customer's requirement
3. Main motor power: 15kw
4. Finish wire diameter: 1.0— 6.0 mm
5. Temperature control: 7 zones
6. Max Line speed: 450m/min
7. Rotation speed: 120 rpm/min
8. Max accumulating length: 200m
9. Extrusion capacity: 110 kg/h
10. Bobbin dia.: 300-630mm

5, MAIN PARTS FUNCTION:
1. Inverter: The speed can be changed from zero to max
2. Pay-off tension: Control automatically by electricity
3. Take-up machine uses Polish rod, transverse and distance can be adjusted by plain shaft.
4. Machine center height: 1 meter

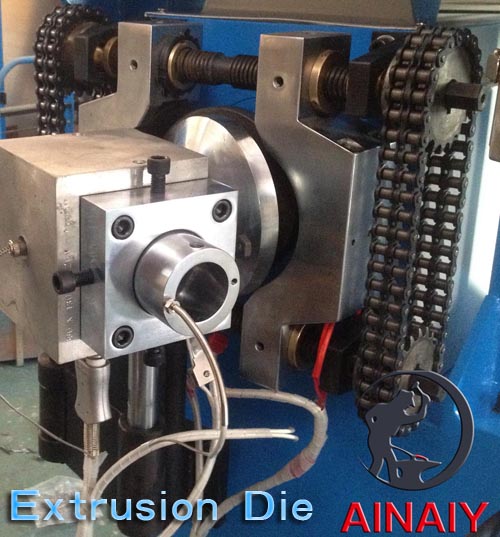

5. Diameter of screw: 50mm, L/D of screw: 26/1. Material: 38 CrMoAiA,
6. The surface of screw is carburized and quenched, electroplated with hard cr.
7. Inside diameter of screw tube: 50mm. Material: 38 CrMoAiA,
8. The surface is carburized and quenched.
9. The material of insulation are PVC, XLPE, LSHF, PE, PP, TPEE, NYLON
10. Production direction: Pay-off on the left. Take-up on the right. Customer's requirement
11. Color of production line is light blue(automobile finish ), safe cover is yellow OR customer's requirement
12. PROMOT SWITCH counter, set length freely.
13. Automatically stop: When the counter has reached to your desired length, the Take up will stop automatically, if wire breaks abnormal and self-actuating brake.
